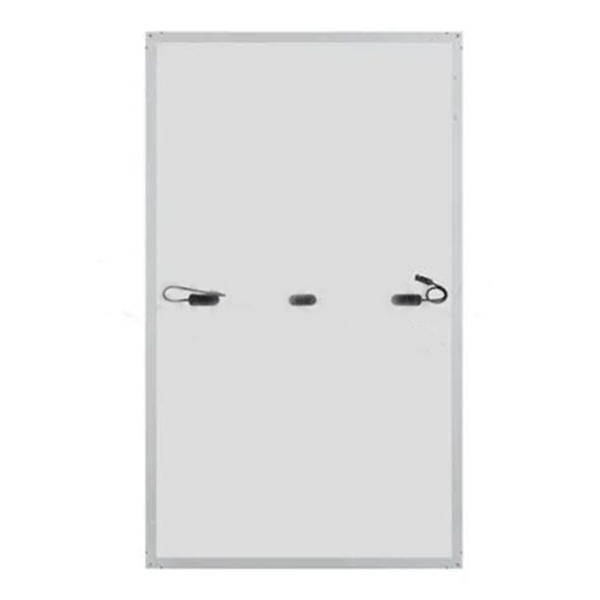

Product Specifications
|
Cell TYPE |
MONO Half Cell |
|
Dimensions |
2280*1135*35 |
|
No. of Cells |
144(6*12) |
|
Weight |
28.6kg¡À3% |
|
TYPE |
OS-HM72-525W |
OS-HM72-535W |
OS-HM72-550W |
|
Rated Maximum Power (Pmax )[W] |
525 |
535 |
550 |
|
Open Circuit Voltage(Voc)[V] |
49.15 |
49.45 |
49.9 |
|
Maximum Power Voltage (Vmp) [V] |
41.15 |
41.41 |
41.96 |
|
Short Circuit Current (Isc) [A] |
13.65 |
13.79 |
14 |
|
Maximum Power Current (Imp) [A] |
12.76 |
12.9 |
13.11 |
|
Maximum system voltage |
1500VDC |
||
|
Junction Box Protection |
IP67 |
||
|
Cables |
4mm2 |
||
|
Connector |
MC4 |
||
|
Max wind load |
2400Pa |
||
|
Max snow load |
5400Pa |
||
|
Operating Temperature |
-40¡æ~+85¡æ |
||
|
Power Tolerance |
¡À3% |
||
